Description
PERFORMANCE
Top Speed: Classes 1/2/3 Off-Road 28+ MPH
Range: 50-90+
Miles 50+ miles of range at 20mph under Class 2 throttle-only 90+ miles of range using Class-1 pedal assist mode
Charge: Time 6-7hrs

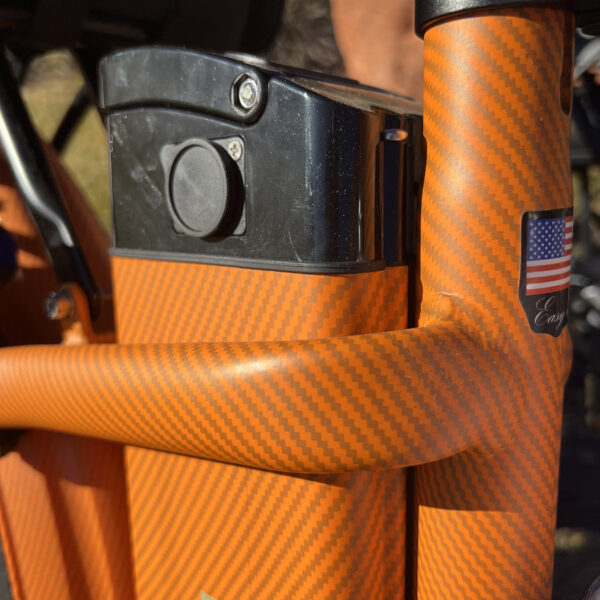

Battery: 960W/H (48v 20Ah) Samsung Lithium-Ion
Motor: Brushless 1000w nominal / 1800w peak

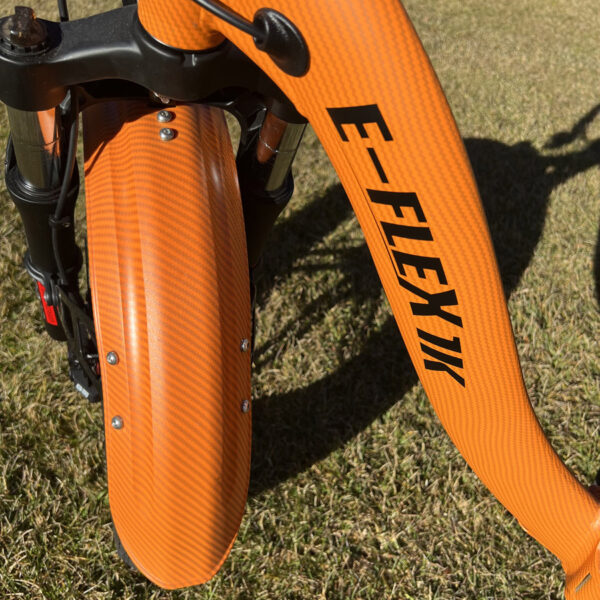

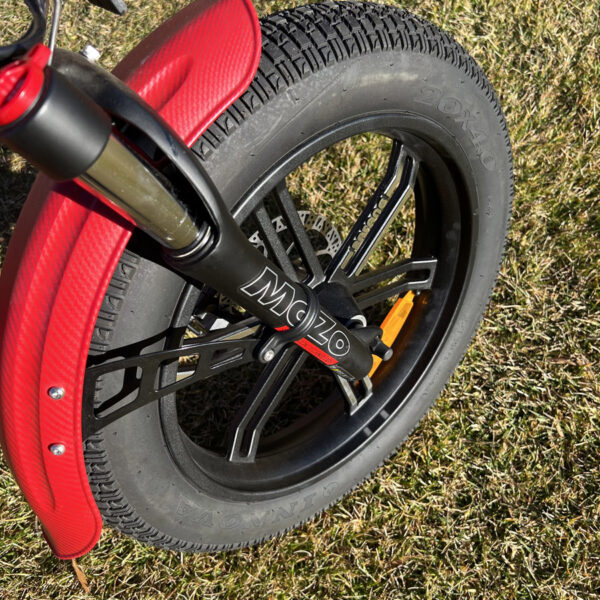

Suspension: MOZO Hydraulic Lock-out (Adjustable)
Brakes: GEMMA G3 Four-Piston Hydraulic Brakes
Tires: 20″ x 4.0″ INNOVA Puncture Resistant Tires
Throttle: Twist
Derailleur: 8 Speed Shimano Altus
Display: LCD Color (KT-LCD8H)
USB: A Port
DIMENSIONS & WEIGHTS
Vehicle Weight: 66lbs
Battery: + 11lbs
Bike: L 68 1/2″ W x 27″ x H 44-49″
Folded: L 39″ x W 21″ x H 32″
Seat Height: 33 1/2″-39″
Rider Weight Limit: 330lbs
FRAMESET

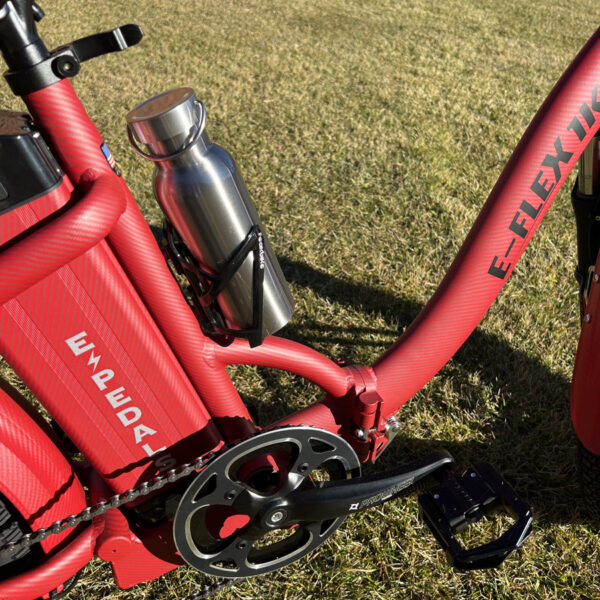

Frame: Aluminum (Folding)
LIGHTS & HORN

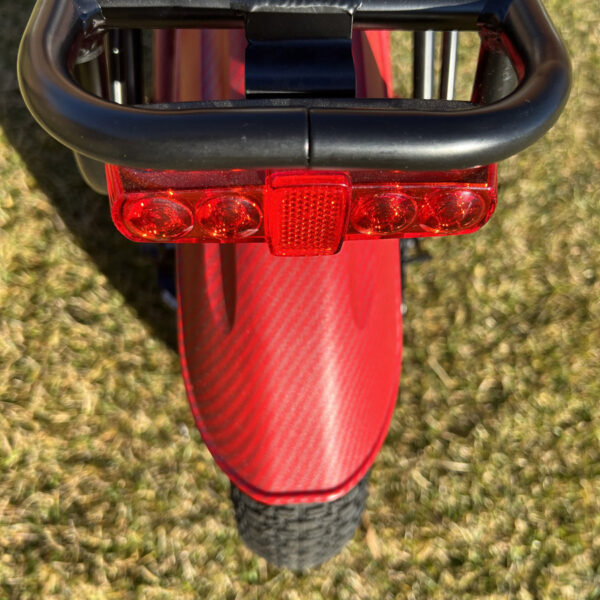

Lights: Dual LED Elements Headlight, Brake, and Tail Lights
Horn: Electric Horn
