Description
PERFORMANCE
Top Speed: Classes 1/2/3 Off-Road 28+ MPH
Range: 50-90+
Miles 50+ miles of range at 20mph under Class 2 throttle-only 90+ miles of range using Class-1 pedal assist mode
Charge: Time 8-10hrs
Battery: 1200W/H (48v 25Ah) Samsung Lithium-Ion
Motor: Brushless 1000w nominal / 1800w peak

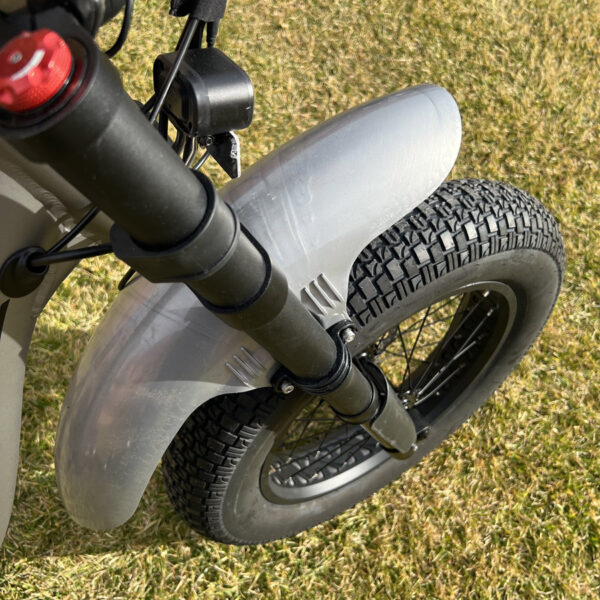

Suspension: Full Forks Hydraulic Air Lock-out, Rebound Adjustable Travel (120-160mm)

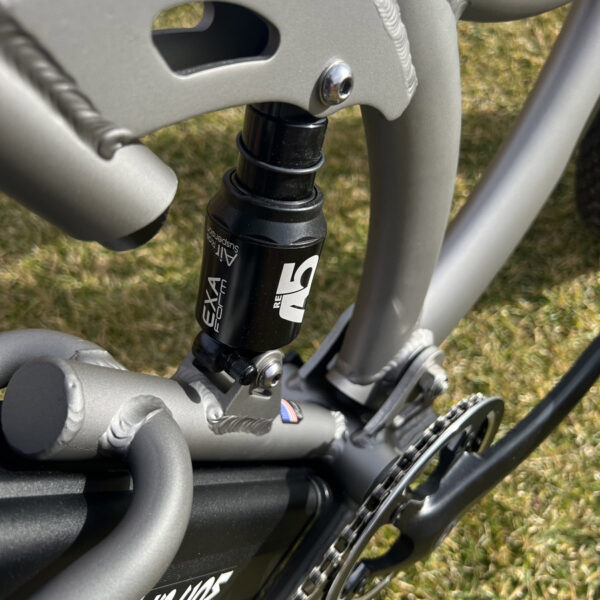

Fram: Adjustable Air Ride Suspension (EXA FORM A5)
Brakes: GEMMA G3 Four-Piston Hydraulic Brakes
Tires: 20″ x 5.0″ INNOVA Puncture Resistance Tires

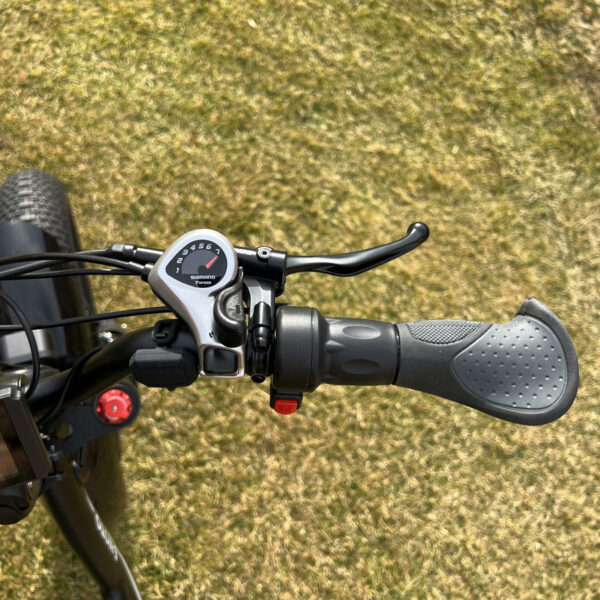

Throttle: Twist on/off Button
Derailleur: 7 Speed Shimano
Display: LCD Color (KT-LCD8H)
Grips: Impact Anti-Slip
USB: A Port
DIMENSIONS & WEIGHTS
Vehicle Weight: 67lbs
Battery + 14lbs
Length x Width x Height: 73″ x 27″ x 43-49″

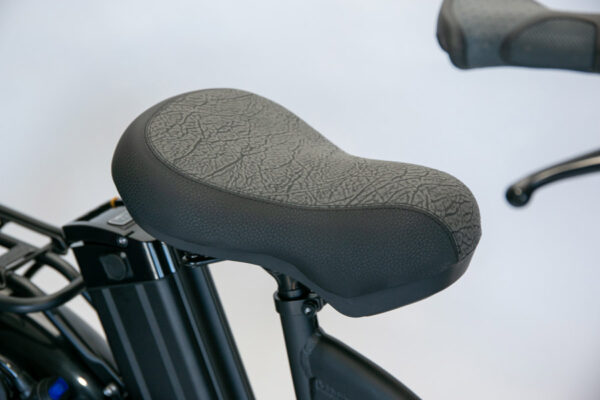

Seat Height: 32″-39″
Rider Weight Limit: 330lbs
FRAMESET
Frame: Aluminum
Suspension: Full
LIGHTS & HORN

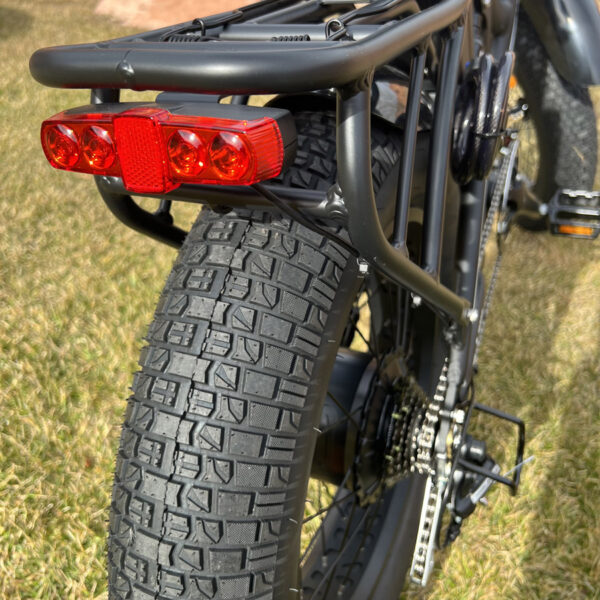

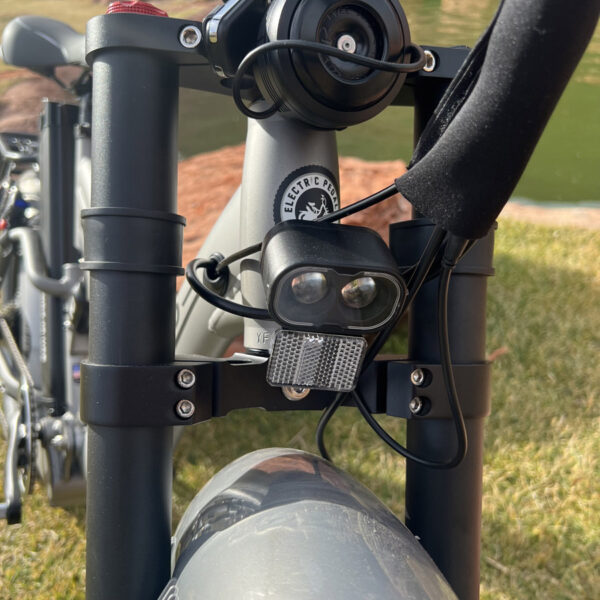

Lights: Dual LED Elements Headlight, Brake, and Tail Lights
Horn: Electric Horn
