Description
PERFORMANCE
Top Speed: Classes 1/2/3 Off-Road 24+ MPH
Range: 40-70+
Miles 40+ miles of range at 20mph under Class 2 throttle-only 70+ miles of range using Class-1 pedal assist mode
Charge: Time 6-7hrs
Battery: 960W/H (48v 20Ah) Samsung Lithium-Ion
Motor: Bafang Brushless 750w nominal / 1200w peak
Brakes: Tektro Hydraulic

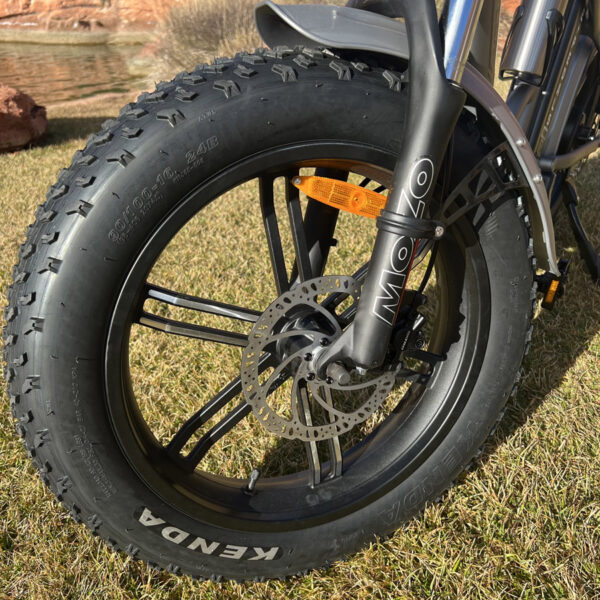

Suspension: MOZO Forks, Hydraulic Lock-out (Adjustable)
Tires: 20″ x 4.0″ KENDA KRUSADE Puncture Resistant

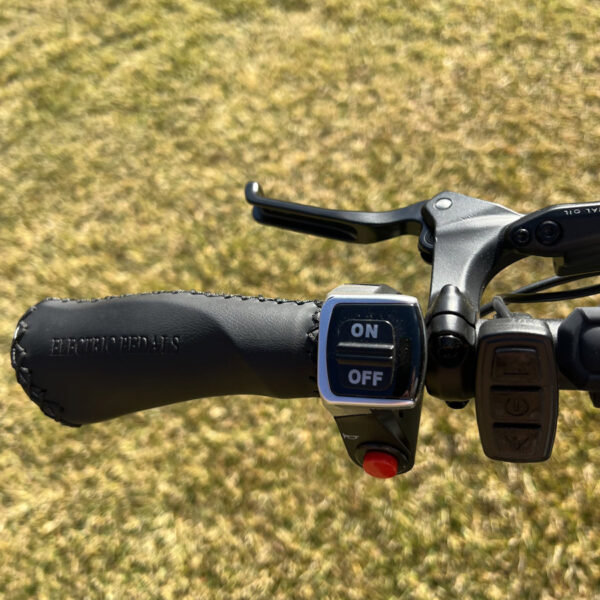

Throttle: Twist on/off Button

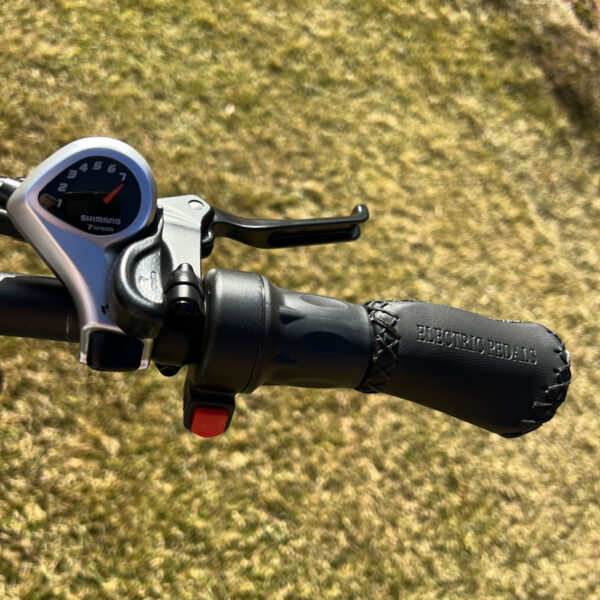

Derailleur: 7 Speed Shimano
Display: LCD Color (KT-LCD8H)
Grips: Leather Oversized Dual Stitch
DIMENSIONS & WEIGHTS
Vehicle Weight: 66lbs
Battery: + 11lbs
Bike: L 68 1/2″ W x 27″ x H 44-49″

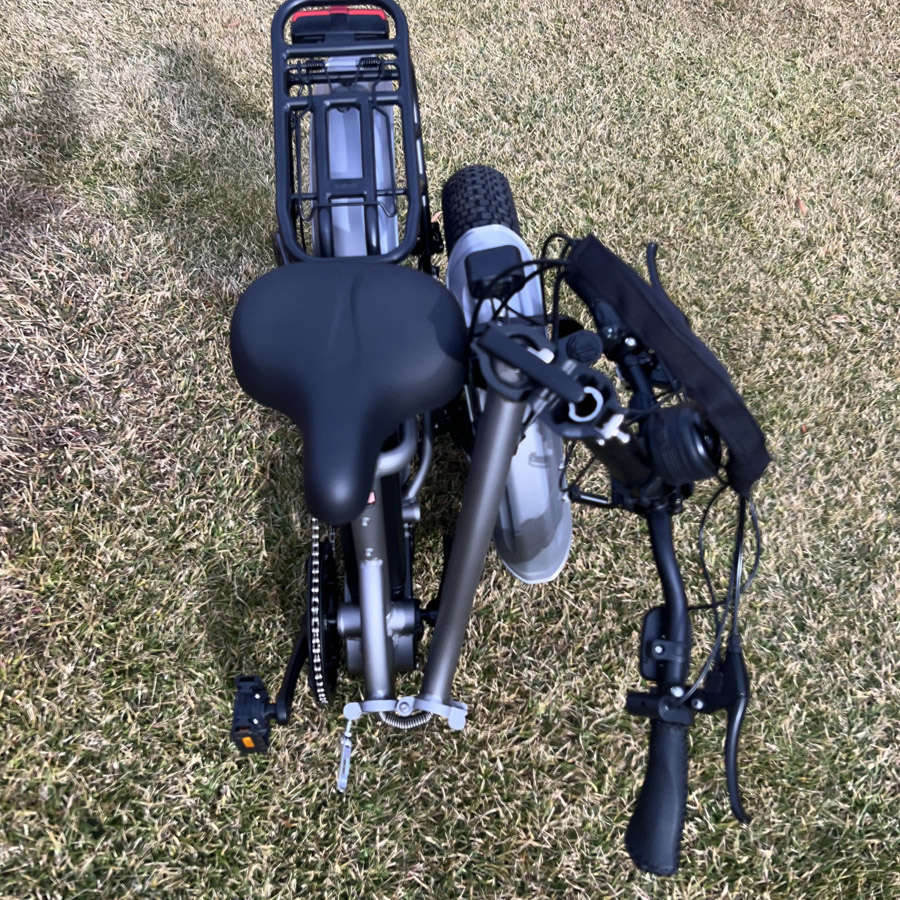

Folded: L 39″ x W 21″ x H 32″
Seat Height: 33 1/2″-39″
Rider Weight Limit: 330lbs
FRAMESET
Frame: Aluminum (Folding)
LIGHTS & HORN

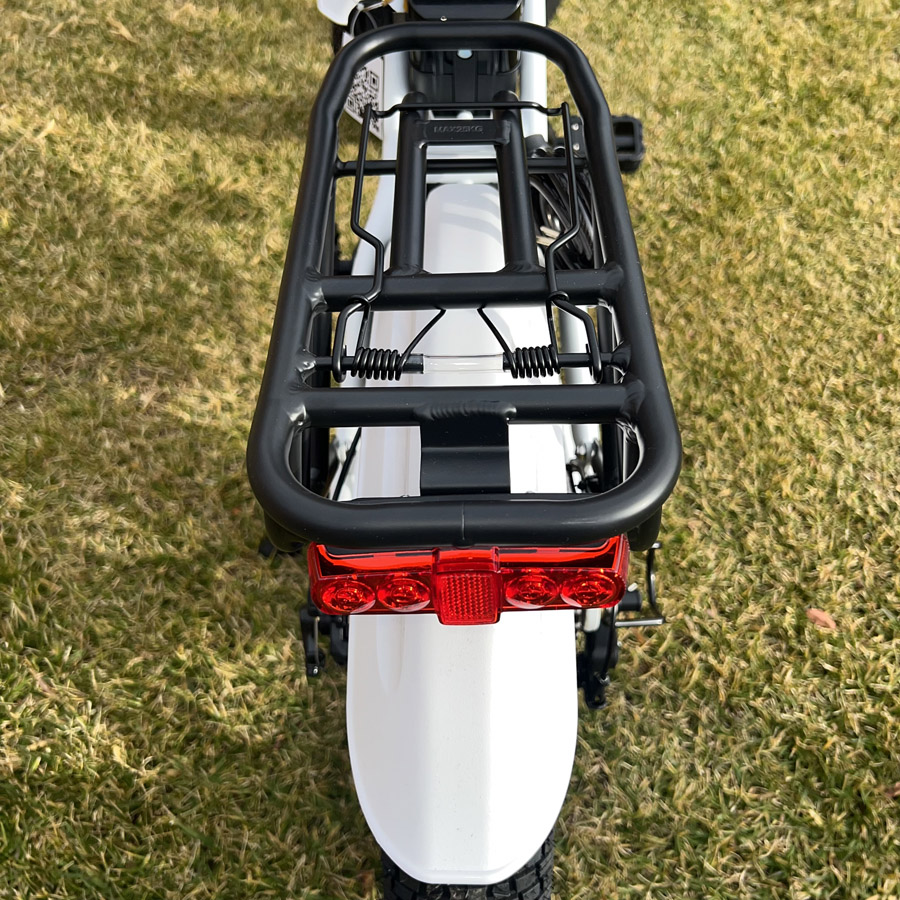

LIGHTS: Dual LED Elements Headlight, Brake, and Tail Lights
Horn: Electric Horn
